Washing Lift

• Color
• Black and silver

• Length
• 5000 mm

• Lift Design
• Other, Hydraulic Hoist, Rail Platform

• Lifting Capacity
• 4 Tons (4000 kg)

• Lifting Height
• 1500 mm

• Lifting Time
• 45 seconds

• Lowering Time
• 45 seconds

• Material
• Mild Steel / Stainless Steel platform

• Motor Power
• 3 HP

• Operate Method
• Push button control

• Power Source
• Electric

• Pressure Capacity
• 10-12 kg/cm2

• Product Type
• Other, Washing Hoist (Rail Type)

• Size
• Standard (custom sizes available)

• Usage
• Commercial vehicle washing

• Used For
• 4-wheeler vehicle washing and servicing

• Width
• 2500 mm

• Working Voltage
• 220 V / 440 V

• Color
• Blue/Black

• Length
• 4200 mm

• Lift Design
• Other, Hydraulic Ramp

• Lifting Capacity
• 4 Tons

• Lifting Height
• 1500 mm

• Lifting Time
• Approx. 50 seconds

• Lowering Time
• Approx. 40 seconds

• Material
• Mild Steel with Anti-Corrosive Coating

• Mesh Type
• Anti-Skid Platform

• Motor Power
• 3 HP

• Operate Method
• Remote/Manual Switch

• Power Source
• Other, Electric / Hydraulic

• Pressure Capacity
• 9-12 kg/cm2

• Product Type

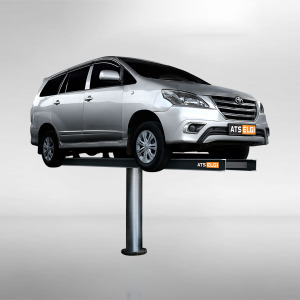

• Other, Washing Hoist, 4 Wheeler, Ramp Type

• Size
• Standard - Suits passenger cars and light commercial vehicles

• Usage
• Automobile Workshop, Service Centers

• Used For
• Vehicle Washing and Servicing

• Width
• 2100 mm

• Working Voltage
• 220V / 380V

• Color
• Silver / Custom

• Length
• Customizable platform length

• Lift Design
• Other, Hydraulic In-ground

• Lifting Capacity
• 8 Ton

• Lifting Height
• Up to 1800 mm

• Lifting Time
• Approximately 50 seconds

• Lowering Time
• Approximately 40-50 seconds

• Material
• Heavy Duty Steel with Corrosion Resistant Coating

• Mesh Type
• Anti-skid platform

• Motor Power
• 3 HP / 2.2 kW

• Operate Method
• Push Button/Remote Controlled

• Power Source
• Electric

• Pressure Capacity
• High Pressure, as per hydraulic system

• Product Type
• Other, Washing Hoist - Rail Type

• Size
• Standard and custom options available

• Usage
• Commercial Vehicle Service

• Used For
• Vehicle washing and maintenance

• Width
• Customizable according to vehicle size

• Working Voltage
• 380V / 415V, 3 Phase

• Color
• Silver / Grey

• Length
• Customizable as per requirement

• Lift Design
• Other, Rail Type In-ground Hydraulic

• Lifting Capacity
• 16 Ton

• Lifting Height
• Up to 1.7 meters

• Lifting Time
• Approx. 60 seconds

• Lowering Time
• Approx. 60 seconds

• Material
• Mild Steel with Anti-corrosion coating

• Motor Power
• 5 HP

• Operate Method
• Hydraulic, Electric

• Power Source
• Other, Electric (hydraulic system)

• Pressure Capacity
• 16 Ton

• Product Type
• Other, Washing Hoist - Rail Type

• Size
• Platform size as per design/specification

• Usage
• Commercial Garage, Service Station, Bus Depots

• Used For
• Truck/Bus/Commercial Vehicle Washing & Servicing

• Width
• Customizable as per vehicle size

• Working Voltage
• 415V / 3 Phase / 50 Hz

• Color
• Silver & Black

• Length
• 2000 mm (Platform)

• Lift Design
• Other, Hydraulic

• Lifting Capacity
• 600 kg

• Lifting Height
• Up to 1500 mm

• Lifting Time
• 30 seconds

• Lowering Time
• Less than 30 seconds

• Material
• Mild Steel/Steel

• Mesh Type
• Non-mesh solid platform

• Motor Power
• 2 HP

• Operate Method
• Hydraulic Foot/Hand Lever

• Power Source
• Electric

• Pressure Capacity
• 200-250 Bar (for washing nozzle)

• Product Type

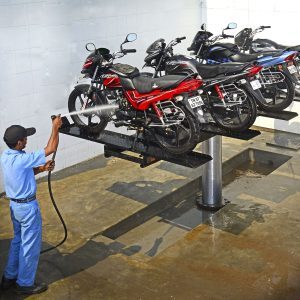

• Other, Two Wheeler Washing Lift

• Size
• 2000 mm x 900 mm (Platform)

• Usage
• Automobile Service Station

• Used For
• Two-wheeler washing and servicing

• Width
• 900 mm (Platform)

• Working Voltage
• 230V/415V

• Color
• Grey & Orange

• Length
• 1400-2000 mm

• Lift Design
• Other, Double Scissor

• Lifting Capacity
• 3500 kg

• Lifting Height
• 1850 mm

• Lifting Time
• 35 seconds

• Lowering Time
• 22 seconds

• Material
• High-strength Steel

• Mesh Type
• Non-meshed steel platform

• Motor Power
• 2.2 kW

• Operate Method
• Push Button Controls

• Power Source
• Electric

• Pressure Capacity
• 8-12 Mpa

• Product Type
• Other, Scissor Lift

• Size
• 2030 x 2000 mm

• Usage
• Automobile Workshops, Service Centers, Garages

• Used For
• Vehicle Servicing, Washing

• Width
• 2030 mm

• Working Voltage
• 220V / 380V
